Add custom services to OpenAdmin

Custom services can be added to OpenAdmin to be run and monitored from the admin panel.

In this example, We will add netdata docker image.

Add service​

cd /root
nano docker-compose.yml

and add the netdata section:

  netdata:
    image: netdata/netdata
    container_name: netdata
    pid: host
    network_mode: host
    restart: unless-stopped
    cap_add:
      - SYS_PTRACE
      - SYS_ADMIN
    security_opt:
      - apparmor:unconfined
    environment:
      - DO_NOT_TRACK=1
      - NETDATA_CLOUD_ENABLE=no
    volumes:
      - ./netdata/config:/etc/netdata
      - ./netdata/lib:/var/lib/netdata
      - ./netdata/cache:/var/cache/netdata
      - /:/host/root:ro,rslave
      - /etc/passwd:/host/etc/passwd:ro
      - /etc/group:/host/etc/group:ro
      - /etc/localtime:/etc/localtime:ro
      - /proc:/host/proc:ro
      - /sys:/host/sys:ro
      - /etc/os-release:/host/etc/os-release:ro
      - /var/log:/host/var/log:ro
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - /run/dbus:/run/dbus:ro

save and exit the file. then start the service:

docker --context=default compose up -d netdata

now, I suggest just whitelisting your IP on the firewall instead of opening the port to the internet.

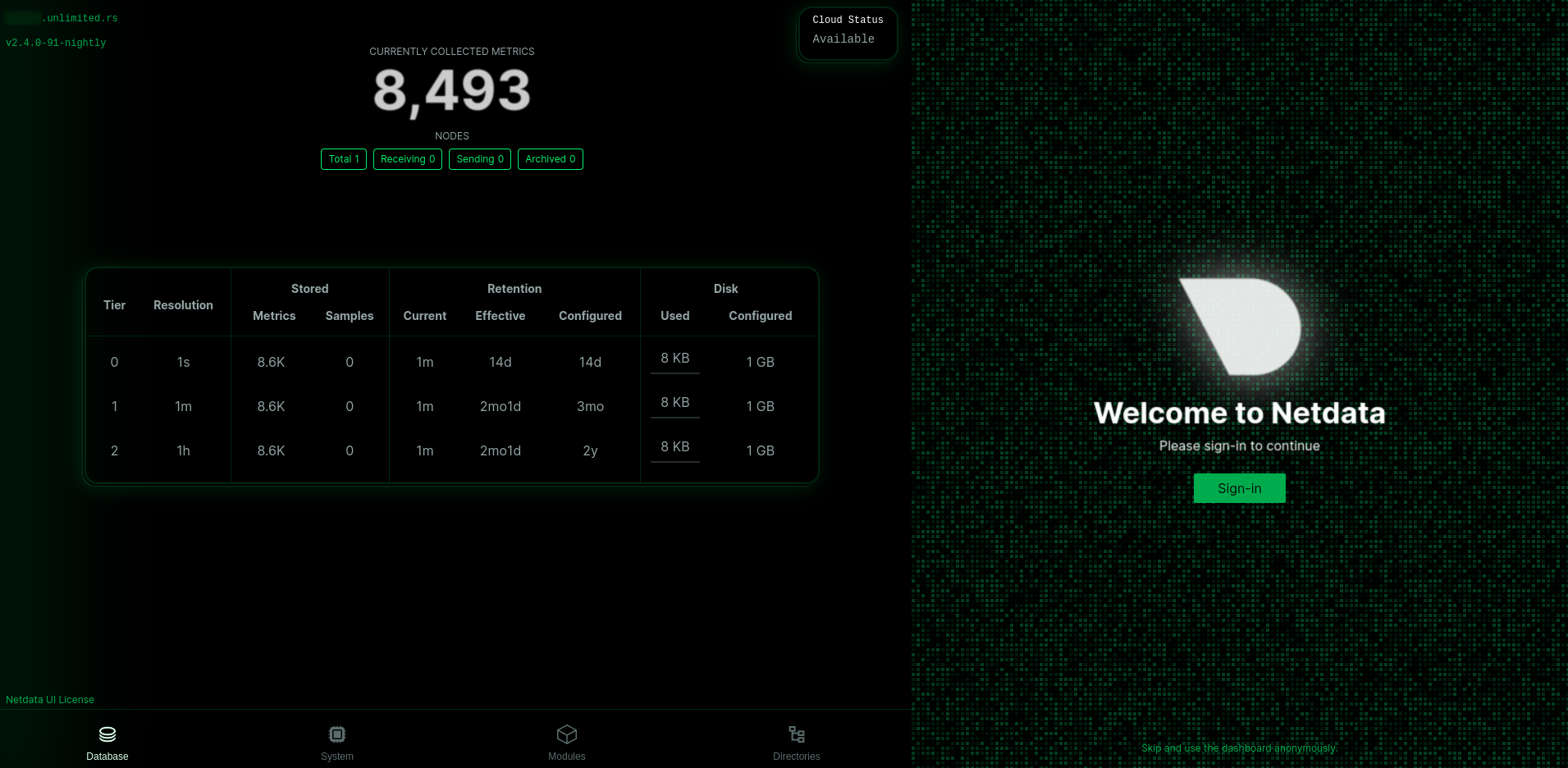

Then open the IP:19999 in your browser:

Monitor service​

Next step is to make the netdata service available from OpenAdmin > Services page so we can view its status, start/stop or restart it.

For this, we need to add the netdata service in /etc/openpanel/openadmin/config/services.json file:

    {
        "name": "Netdata",
        "type": "docker",
        "on_dashboard": false,
        "real_name": "netdata"
    },

real_name is the service/container name, and name is the human-readable name displayed in OpenAdmin services.

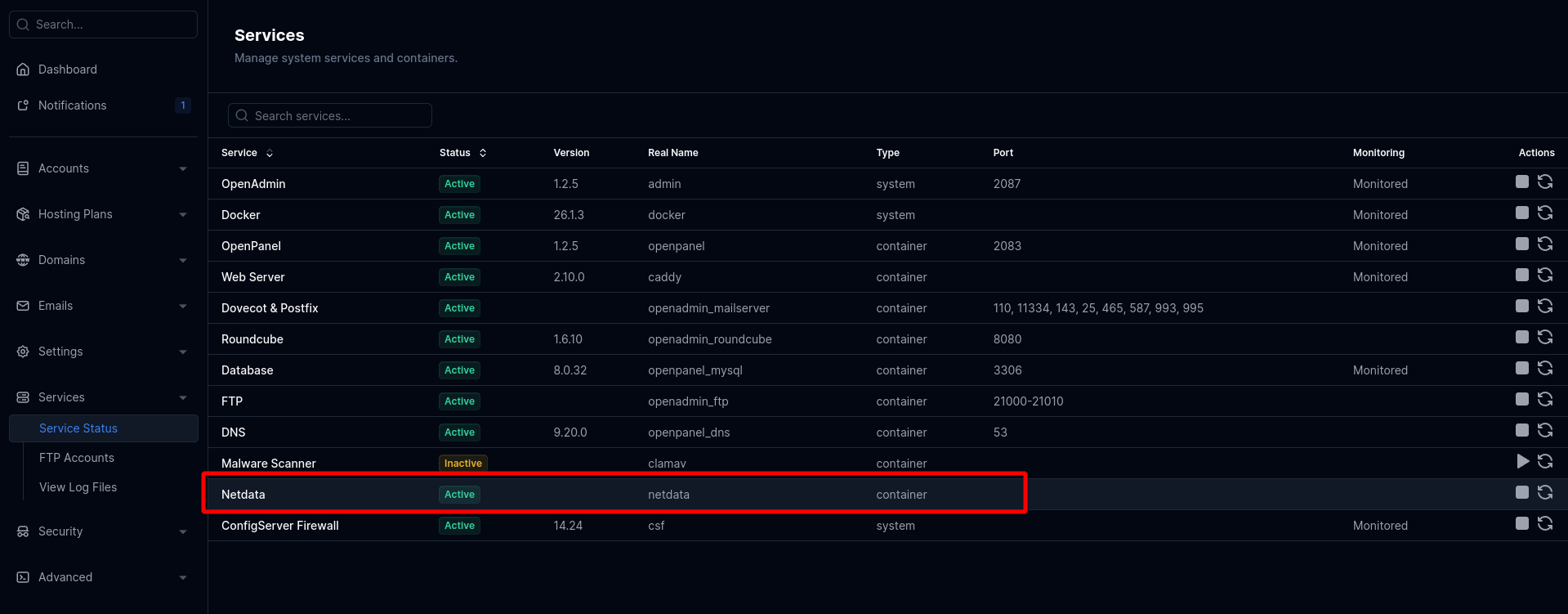

Save the file and refresh the page in OpenAdmin - service is immeditelly visible and we can start/stop it from the panel.

We can also receive notifications when the service is not running. For this edit the file: /etc/openpanel/openadmin/config/notifications.ini and add service name (netdata) under services:

services=panel,admin,caddy,mysql,docker,csf,netdata

save the file and exit. Sentinel service will now also check if the netdata container is running and if not, send alerts to OpenAdmin > Notifications and if emails are enabled then to email as well.
