Setup Fail2ban

Ensure that you're running the Enterprise edition of OpenPanel. Email support is only available in this version.

Follow this guide to enable Emails in OpenPanel.

Fail2ban is an intrusion prevention software framework. Written in the Python programming language, it is designed to prevent against brute-force attacks. It is able to run on POSIX systems that have an interface to a packet-control system or firewall installed locally, such as NFTables or TCP Wrapper. More Information

Enabling Fail2Ban support requires granting at least the NET_ADMIN capability to the mailserver in order to interact with the kernel and ban IP addresses.

1. Enable Fail2ban​

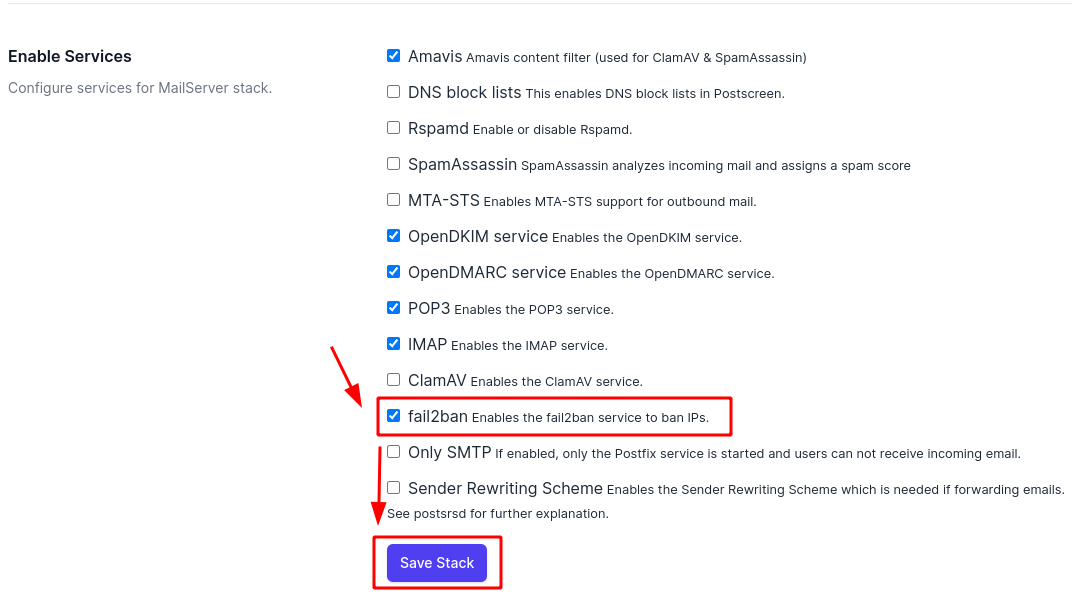

To enable Fail2ban, navigate to OpenAdmin > Emails > Settings and under 'Enable Services' select fail2ban then click on 'Save Stack'.

2. Recreate mailserver​

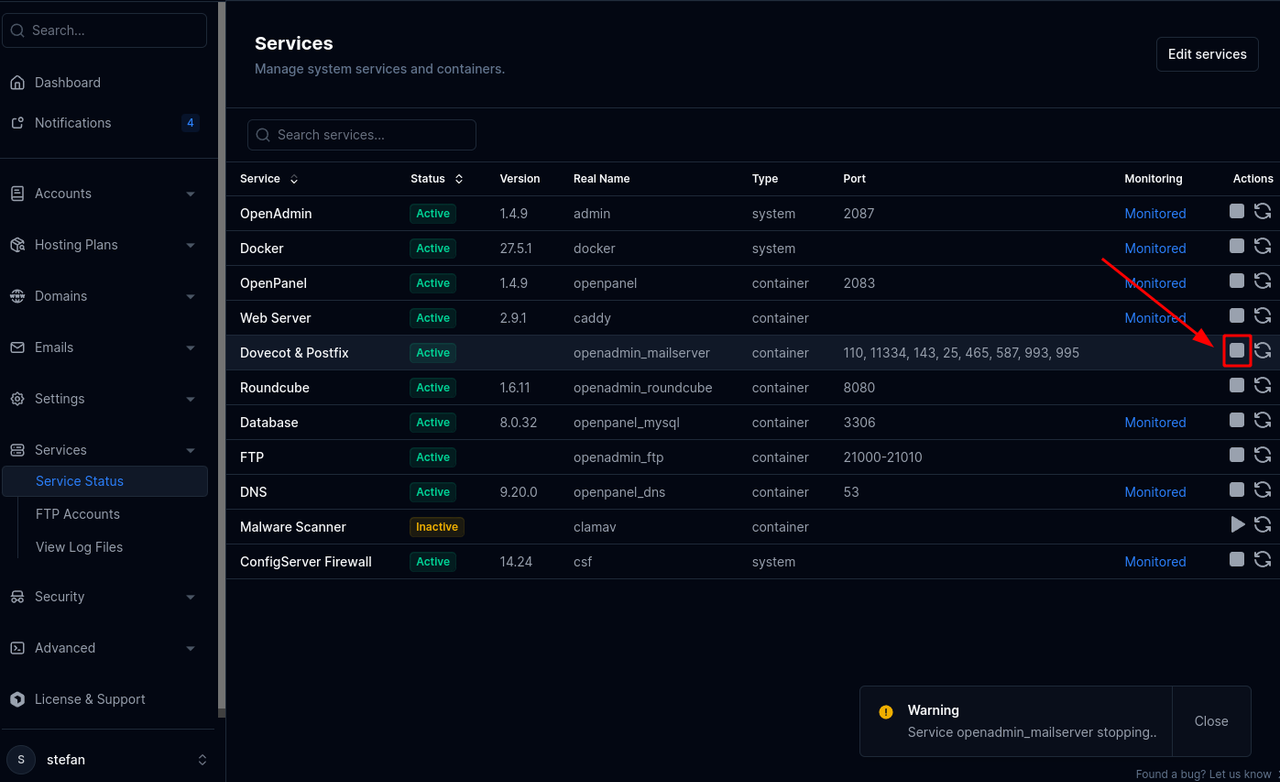

Fail2ban requires that the mailserver container is stopped, and start again in order to activate. Navigate to OpenAdmin > Services > Status and click 'Stop' for mailserver, then again 'Start'.

Edit Configuration​

Mailserver will automatically ban IP addresses of hosts that have generated 6 failed attempts over the course of the last week. The bans themselves last for one week. The Postfix jail is configured to use mode = extra.

If created, the following configuration files will be copied inside the container during startup. To customize the configuration, simply create a new file and customize the examples:

• /usr/local/mail/openmail/docker-data/dms/config/fail2ban-jail.cf - adjust the configuration of individual jails and their defaults, example file
• /usr/local/mail/openmail/docker-data/dms/config/fail2ban-fail2ban.cf - adjust F2B behavior in general, example file

Example:

To modify the number of failed logins before IP is blocked (default: 6), or change the bantime (default: 1w):

• create file /usr/local/mail/openmail/docker-data/dms/config/fail2ban-jail.cf
• in it, paste this example
• change the maxretry and bantime values:

[DEFAULT]

# "bantime" is the number of seconds that a host is banned.
bantime = 1w

# A host is banned if it has generated "maxretry" during the last "findtime"
# seconds.
findtime = 1w

# "maxretry" is the number of failures before a host get banned.
maxretry = 6

# "ignoreip" can be a list of IP addresses, CIDR masks or DNS hosts. Fail2ban
# will not ban a host which matches an address in this list. Several addresses
# can be defined using space (and/or comma) separator.
ignoreip = 127.0.0.1/8

# default ban action
# nftables-multiport: block IP only on affected port
# nftables-allports:  block IP on all ports
banaction = nftables-allports

[dovecot]
enabled = true

[postfix]
enabled = true
# For a reference on why this mode was chose, see
# https://github.com/docker-mailserver/docker-mailserver/issues/3256#issuecomment-1511188760
mode = extra

[postfix-sasl]
enabled = true

# This jail is used for manual bans.
# To ban an IP address use: opencli email-setup fail2ban ban <IP>
[custom]
enabled = true
bantime = 180d
port = smtp,pop3,pop3s,imap,imaps,submission,submissions,sieve

View and Manage Bans​

• opencli email-setup fail2ban - shows all banned IP addresses
• opencli email-setup fail2ban status - shows more detailed status
• opencli email-setup fail2ban ban <IP> - ban an IP address
• opencli email-setup fail2ban unban <IP> - unban an IP address
• opencli email-setup fail2ban log - view fail2ban log file
