How to Set Up DKIM for Your Mail Server

Ensure that you're running the Enterprise edition of OpenPanel. Email support is only available in this version.

Follow this guide to enable Emails in OpenPanel.

OpenDKIM is currently enabled by default.

1. Generate DKIM keys​

To generate DKIM keys for a domain, run:

opencli email-setup config dkim domain DOMAIN_NAME_HERE

When the mailserver is installed, OpenPanel already generates a 2048-bit key for every newly added domain, so you only need to run this for domains that don't have a key yet.

Key length​

Keys are 2048-bit by default. To generate a different size, add the keysize option. Supported values are 1024, 2048 and 4096:

opencli email-setup config dkim keysize 1024 domain DOMAIN_NAME_HERE

A 2048-bit public key is longer than the 255 characters a single TXT string can hold, so the record has to be split into multiple parts (see Formatting the TXT record value below). If your DNS provider can't store a split or long TXT record, use 1024: the record then fits in a single string. Otherwise keep 2048, which is the recommended size; 1024 is the minimum that receivers accept.

2. DNS record​

When mail signed with your DKIM key is sent from your mail server, the receiver needs to check a DNS TXT record to verify the DKIM signature is trustworthy.

OpenPanel DNS​

If you are using nameservers on the same OpenPanel server that mailserver is running on, then run:

podman cp openadmin_mailserver:/tmp/docker-mailserver/opendkim/keys/DOMAIN_NAME_HERE/mail.txt /tmp/mail.txt && cat /tmp/mail.txt >> /etc/bind/zones/DOMAIN_NAME_HERE.zone

Make sure to replace DOMAIN_NAME_HERE with yourdomain.com

This will append the DKIM record to the DNS zone.

External DNS​

If you are using external nameservers like Cloudflare, run this command to view the record:

podman cp openadmin_mailserver:/tmp/docker-mailserver/opendkim/keys/DOMAIN_NAME_HERE/mail.txt /tmp/mail.txt && cat /tmp/mail.txt

Add the TXT record to your remote server's DNS zone:

Formatting the TXT record value correctly: TXT records with values that are longer than 255 characters need to be split into multiple parts. This is why the generated mail.txt file (containing your public key for use with DKIM) has multiple value parts wrapped within double-quotes between ( and ).

A DNS web-interface may handle this separation internally instead, and could expect the value provided all as a single line instead of split. When that is required, you'll need to manually format the value as described below.

Your generated DNS record file (mail.txt) should look similar to this:

mail._domainkey IN TXT ( "v=DKIM1; k=rsa; "
"p=MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAqQMMqhb1S52Rg7VFS3EC6JQIMxNDdiBmOKZvY5fiVtD3Z+yd9ZV+V8e4IARVoMXWcJWSR6xkloitzfrRtJRwOYvmrcgugOalkmM0V4Gy/2aXeamuiBuUc4esDQEI3egmtAsHcVY1XCoYfs+9VqoHEq3vdr3UQ8zP/l+FP5UfcaJFCK/ZllqcO2P1GjIDVSHLdPpRHbMP/tU1a9mNZ"
"5QMZBJ/JuJK/s+2bp8gpxKn8rh1akSQjlynlV9NI+7J3CC7CUf3bGvoXIrb37C/lpJehS39KNtcGdaRufKauSfqx/7SxA0zyZC+r13f7ASbMaQFzm+/RRusTqozY/p/MsWx8QIDAQAB"
) ;

Take the content between ( ... ), and combine all the quote wrapped content and remove the double-quotes including the white-space between them. That is your TXT record value, the above example would become this:

v=DKIM1; k=rsa; p=MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAqQMMqhb1S52Rg7VFS3EC6JQIMxNDdiBmOKZvY5fiVtD3Z+yd9ZV+V8e4IARVoMXWcJWSR6xkloitzfrRtJRwOYvmrcgugOalkmM0V4Gy/2aXeamuiBuUc4esDQEI3egmtAsHcVY1XCoYfs+9VqoHEq3vdr3UQ8zP/l+FP5UfcaJFCK/ZllqcO2P1GjIDVSHLdPpRHbMP/tU1a9mNZ5QMZBJ/JuJK/s+2bp8gpxKn8rh1akSQjlynlV9NI+7J3CC7CUf3bGvoXIrb37C/lpJehS39KNtcGdaRufKauSfqx/7SxA0zyZC+r13f7ASbMaQFzm+/RRusTqozY/p/MsWx8QIDAQAB

Test DNS​

To test that your new DKIM record is correct, query it with the dig command. The TXT value response should be a single line split into multiple parts wrapped in double-quotes:

$ dig +short TXT mail._domainkey.example.com
"v=DKIM1; k=rsa; p=MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAqQMMqhb1S52Rg7VFS3EC6JQIMxNDdiBmO.."

3. Restart Mailserver​

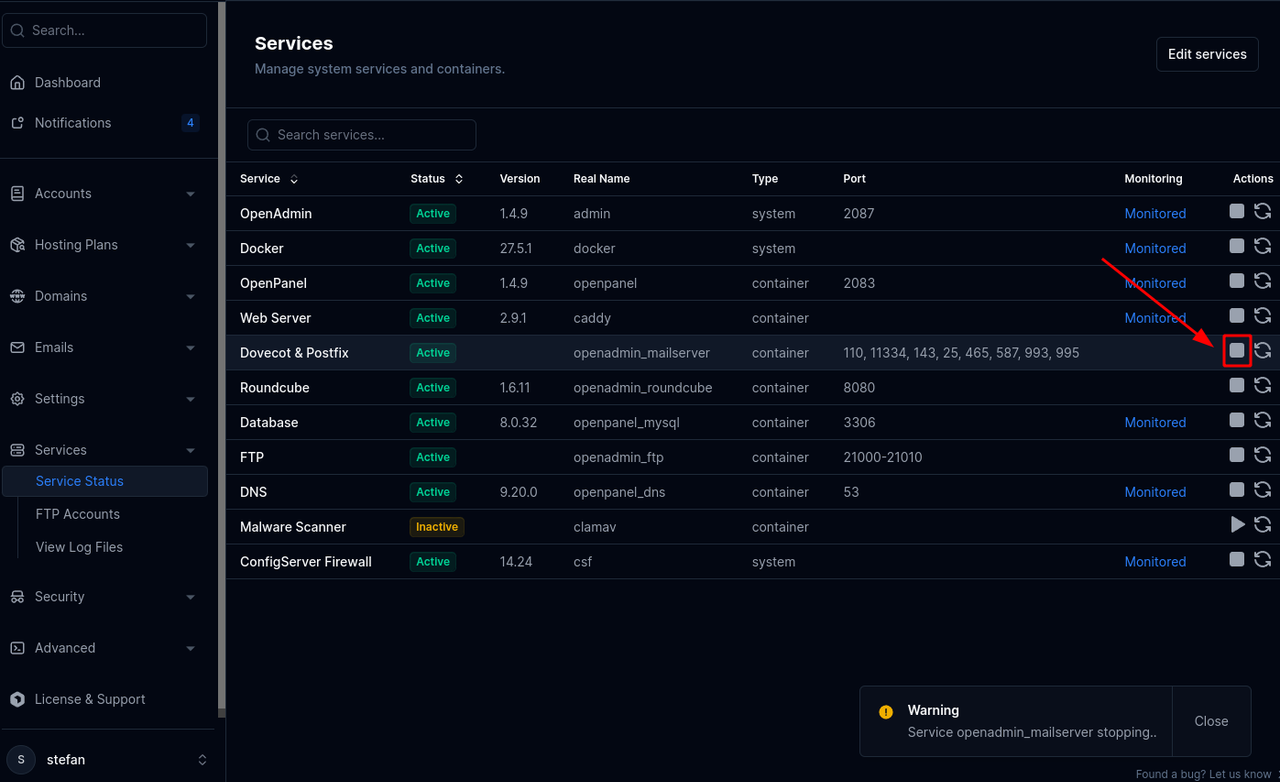

Currently mailserver needs to be stopped and started again in order to start signing your outgoing emails with DKIM. Navigate to OpenAdmin > Services > Service Status and click 'Stop' for mailserver, then again 'Start'.

4. Regenerate an existing DKIM key​

To change the key length of a domain that already has a DKIM key (for example, to switch from 2048-bit to 1024-bit), delete the old key and generate a new one.

1. Delete the existing key:

   rm -rf /usr/local/mail/openmail/docker-data/dms/config/opendkim/keys/DOMAIN_NAME_HERE


   The mailserver keeps signing with the old key until it is restarted in step 4.

2. Generate the new key:

   opencli email-setup config dkim keysize 1024 domain DOMAIN_NAME_HERE


3. Replace the DNS record. The old public key no longer matches, so the existing mail._domainkey record has to be replaced, not added to.

   OpenPanel DNS: remove the old record from the zone, append the new one and reload the zone:

   sed -i '/^mail\._domainkey/{:a;/)/!{N;ba};d}' /etc/bind/zones/DOMAIN_NAME_HERE.zone
   cat /usr/local/mail/openmail/docker-data/dms/config/opendkim/keys/DOMAIN_NAME_HERE/mail.txt >> /etc/bind/zones/DOMAIN_NAME_HERE.zone
   opencli domains-dns check DOMAIN_NAME_HERE && opencli domains-dns reload DOMAIN_NAME_HERE


   If you use a secondary (slave) DNS server, also increase the serial number in the zone's SOA record before reloading so the change is transferred.

   External DNS: edit the existing mail._domainkey TXT record and replace its value with the new key, formatted as described in External DNS.

4. Once dig returns the new key (see Test DNS), restart the mailserver so it starts signing with the new key.

5. Troubleshooting​

MxToolbox has a DKIM Verifier that you can use to check your DKIM DNS record(s).
